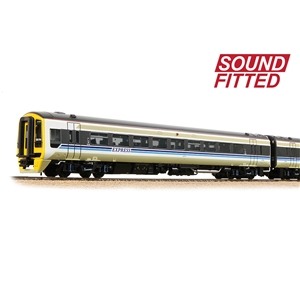

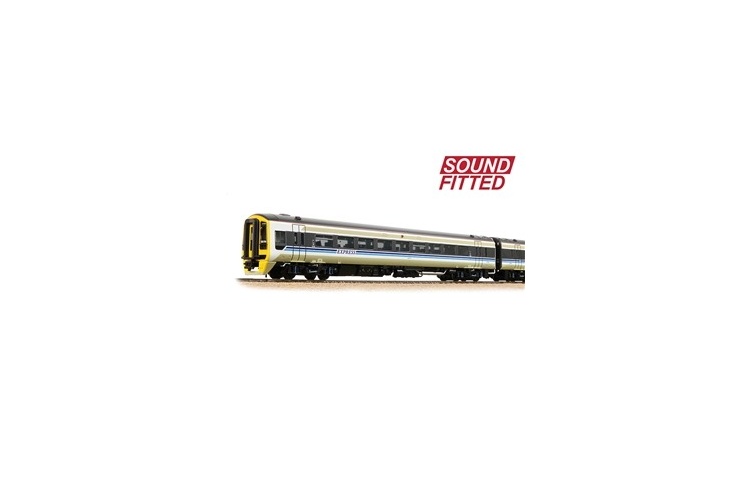

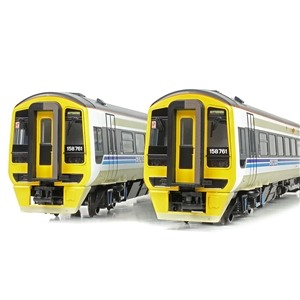

Bachmann 31-496SF Class 158 2 Car DMU 158761 BR Provincial Express

Bachmann 31-496SF Class 158 2 Car DMU 158761 BR Provincial Express

2 car DMU set with sound fitted

MODEL FEATURES:
Bachmann Branchline OO Scale
Era 8
Pristine BR Provincial (Express) livery

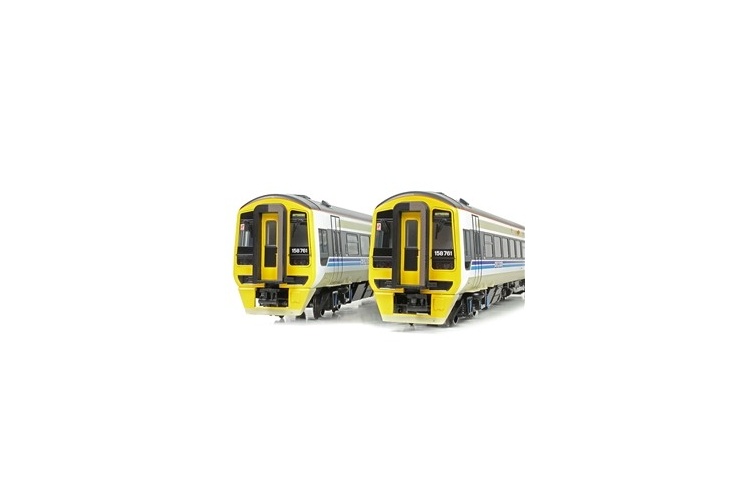

Running No. 158761

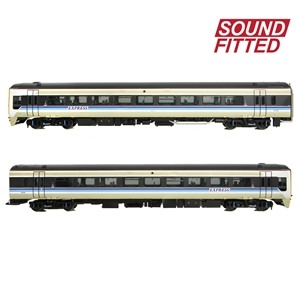

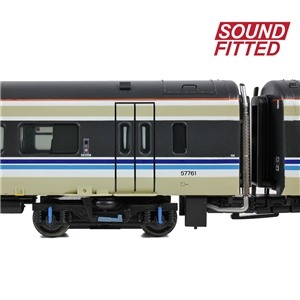

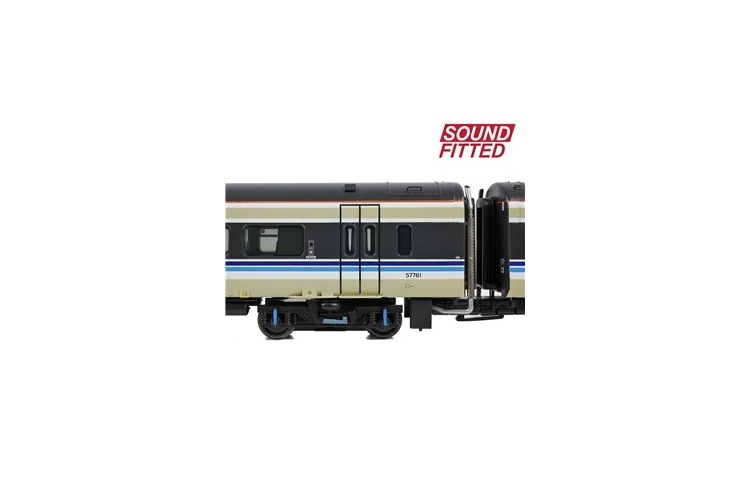

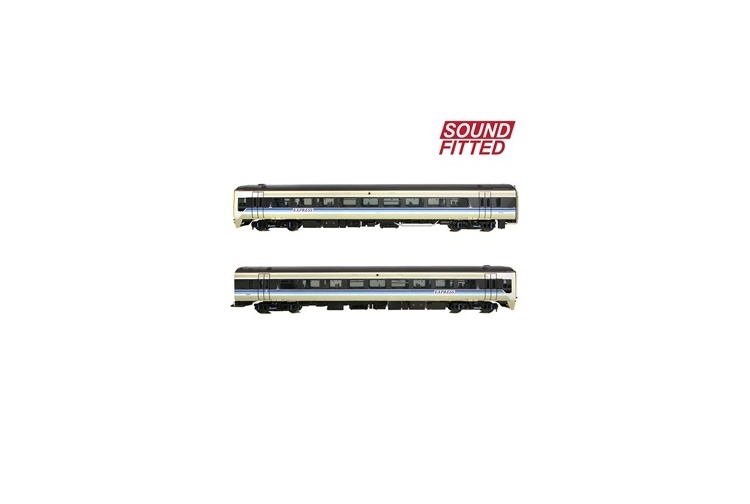

Two-Car Unit comprising car Nos. 52761 & 57761
Destination blinds for Nottingham
SOUND FITTED - Fitted with a Zimo MX645P22 DDC Sound Decoder – See below for the function list
Length 610mm

MECHANISM:
EACH TWO-CAR UNIT COMPRISES TWO POWERED VEHICLES WITH THE FOLLOWING FEATURES:
Three pole motor with flywheel providing drive to the inner bogie
Twin axle drive
Separate metal bearings fitted to each driven axle
Trailing axles run in metal pinpoint bearings
Electrical pickup from all wheels
Diecast metal, multi-stage gearbox, with gearing arranged for prototypical running speeds and haulage capabilities
16.5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
Working miniature BSI Couplings at the cab end

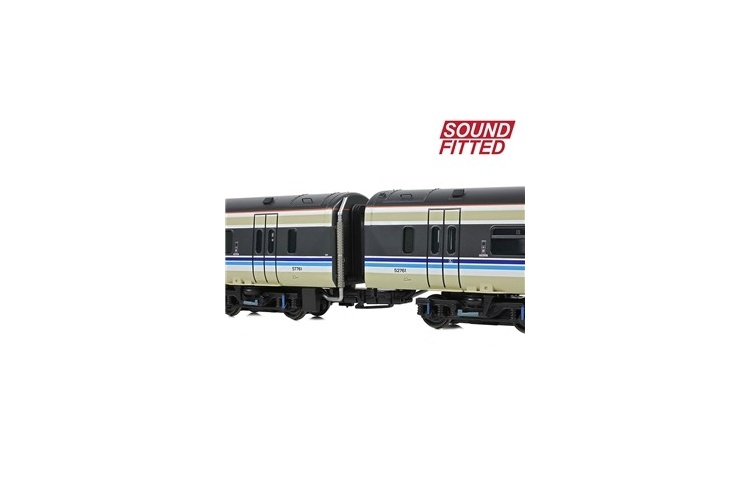

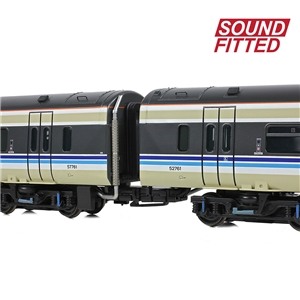

Conductive couplings with integral close coupling mechanism at the inner end
Designed to operate on curves of second radius (438mm) or greater
DETAILING:
Separately applied metal detail parts, including exhaust guards and interior luggage racks
Bogies constructed from multiple components featuring brake and suspension detail
Separately fitted underframe components
Each model is supplied with an accessory pack comprising exhaust pipes, frame extensions and coupling tool

LIGHTING:

Directional lighting, including illuminated destination panels, with Day/Night mode – selectable via the chassis-mounted switches or via a dedicated DCC function
Directional lights can be turned on/off at each end independently via the chassis-mounted switches or via separate DCC functions
Passenger saloon lighting – switchable on/off via the chassis-mounted switches or via a dedicated DCC function
Cab lighting at the trailing end*
Door interlock lights* (*when used on DCC)
Authentic light colours and temperatures selected for each lighting application

DCC:

Plux22 DCC decoder interface – one decoder required per unit
Easy-access DCC decoder socket located behind removable panel on underside of Car A
SOUND:
Two speakers fitted, one in each vehicle, for optimum sound reproduction – fitted to every model as standard
Zimo MX645P22 DCC Sound Decoder fitted to SOUND FITTED versions
Sound files produced specifically for the Bachmann Branchline Class 158 DMU using recordings from real units
SOUND FITTED models operate on DCC and Analogue control as supplied
LIVERY APPLICATION:
Authentic liveries applied to both vehicles including interior decoration
Multiple paint applications employed using BR and corporate specification colours
Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
SOUNDS:
F0 - Directional Lights - On / Off
F1 - On - Warm Start / F13 - On, then F1 - On - Warm Start with Compressor Speed-up / F5 - On, then F1 - On - Cold Start / F5 - On, then F13 - On, then F1 - On - Cold Start with Compressor Speed-up
F2 - Brake (Non-Latching)
F3 - Single Horn
F4 - Two-Tone Horn
F5 - Light Engine
F6 - Engine Idle / Coasting
F7 - Flange Squeal
F8 - On - Doors Opening (F1 On) / Off - Doors Closing (F1 On)
F9 - Passenger Compartment Lights - On / Off
F10 - Guard's Whistle
F11 - On - Driver's Buzzer / Off - Guard's Response
F12 - On - Driver's Twin Buzzer / Off - Guard's Response
F13 - Engine Speed Up
F14 - On - Directioal Lights Day Mode / Off - Directional Lights Night Mode
F15 - Cab Lights (Trailing End) - On / Off
F16 - Air Conditioning Fan
F17 - Windscreen Wipers
F18 - On - Doors Opening (F1 Off) / Off - Doors Closing (F1 Off)
F19 - Fade All Sounds
F20 - Directional Lights Off (Car A, 57xxx)
F21 - Directional Lights Off (Car B, 52xxx)
F22 - Station Ambience
F23 - Remote Telephone Test
F24 - Detonators
F25 - AWS
F26 - No User Access
F27 - Volume Down
F28 - Volume Up
Analogue Users: Please note that basic prime mover sounds will operate and will vary according to use when this model is used on analogue control (DC) straight from the box! Directional lights and passenger compartment lights will also illuminate when power is applied.
