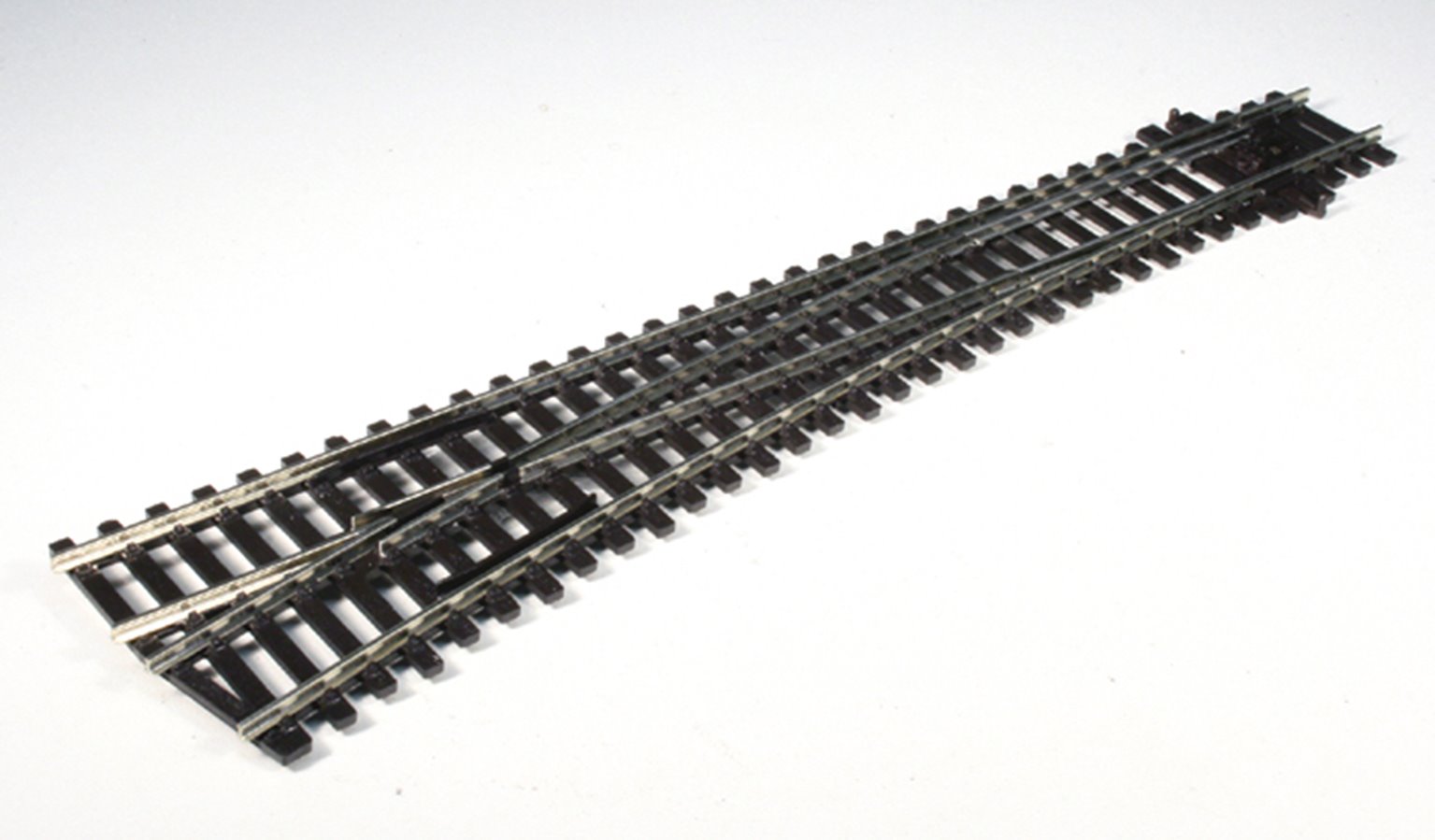

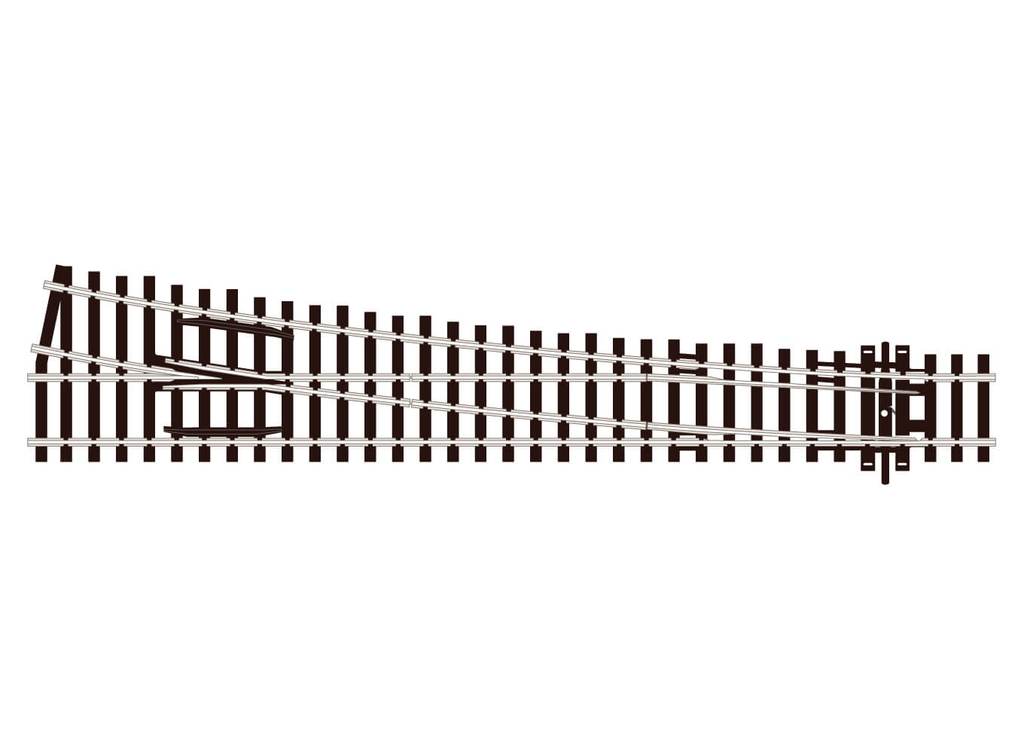

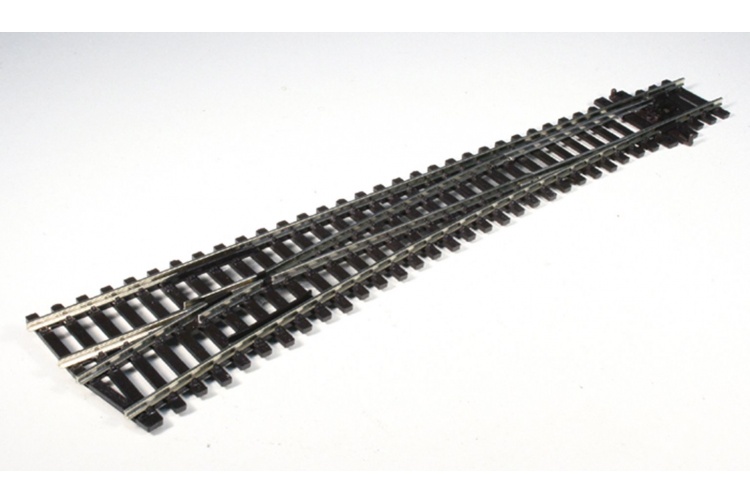

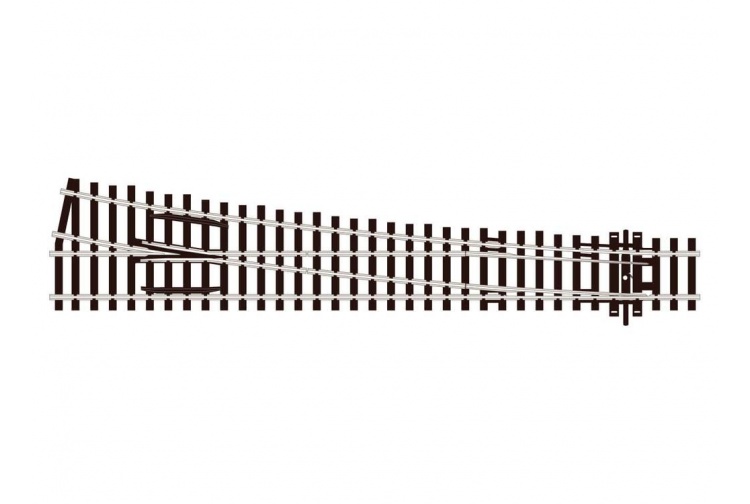

Peco SL-89 Insulfrog Left Hand Large Point

Peco SL-89 Insulfrog Left Hand Large Point.

If you wish to mix wheel standards on your 00/H0 layout, this is the trackage to choose. Code 100 rail allows flange depths up to 1.6mm which means that both vintage and current stock will run happily together.

The wide range of turnouts and crossings in this series includes every type, and the geometry of this range has been cleverly designed to make it easy to build convenient, complex and aesthetically pleasing formations using combinations of small, medium and large radius turnouts and crossings. Layout plans suggestions can be found in our publications ‘Track Plans for Layouts to Suit all Locations’ (Ref PM-202), ‘60 Plans for Small Railways’ (Ref no PB-3), and ‘Track Plans for Various Locations’ (Ref no PB-66).

This track is 258mm (length), has a frog angle of 12 degrees and a radius of 1524mm. It can be used with the Peco SL-10 conducting rail joiners, the Peco SL-11 insulated rail joiners, the Peco SL-14 track fixing pins and the Peco SL56 track underlay.
